This series of products uses the oxygen-producing molecules of UOP, a world-renowned manufacturer, as the adsorbent, and separates the oxygen in the air from the nitrogen by the pressure swing adsorption method (PSA), and filters out harmful substances in the air to obtain medical standards. High concentration of oxygen. The PSA Oxygen Generator provides you with 95% ± 3 purity of oxygen to meet your needs, with installation and operating costs lower than bottled or liquefied oxygen.
First, the characteristics:
1. Air is used as raw material, no auxiliary materials are needed, power consumption is small, and oxygen production cost is low.
2, the performance is stable, the complete gas path is low pressure system, the operation is safe and reliable.
3. The flow rate is adjustable, the oxygen supply is large, and the noise is low.
4, easy to operate, with the system, continuous oxygen supply.
Second, the composition: two sets of generator units (UOP oxygen molecules in the United States), solenoid valves (Japan CKD, SMC, Taiwan-made AIRTAC, SNS) switchboard, gas-water separator, oil-free air compressor (selected according to system size) )

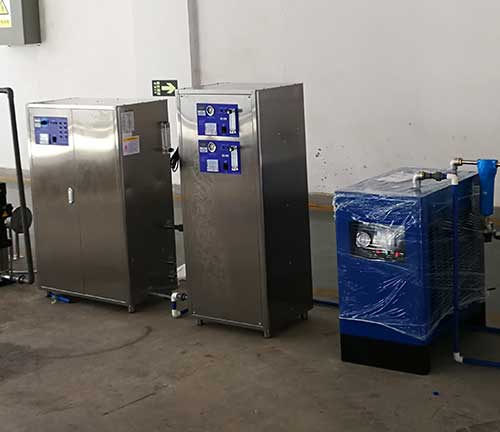

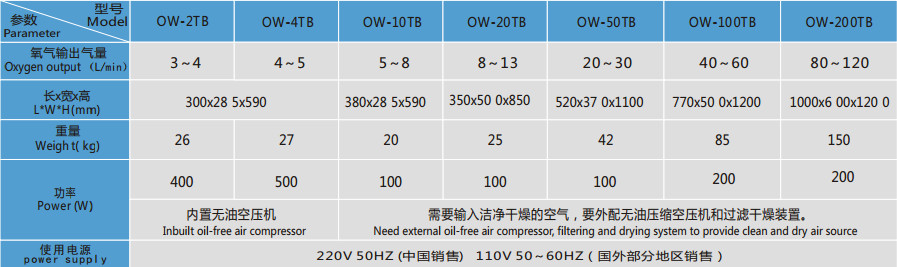

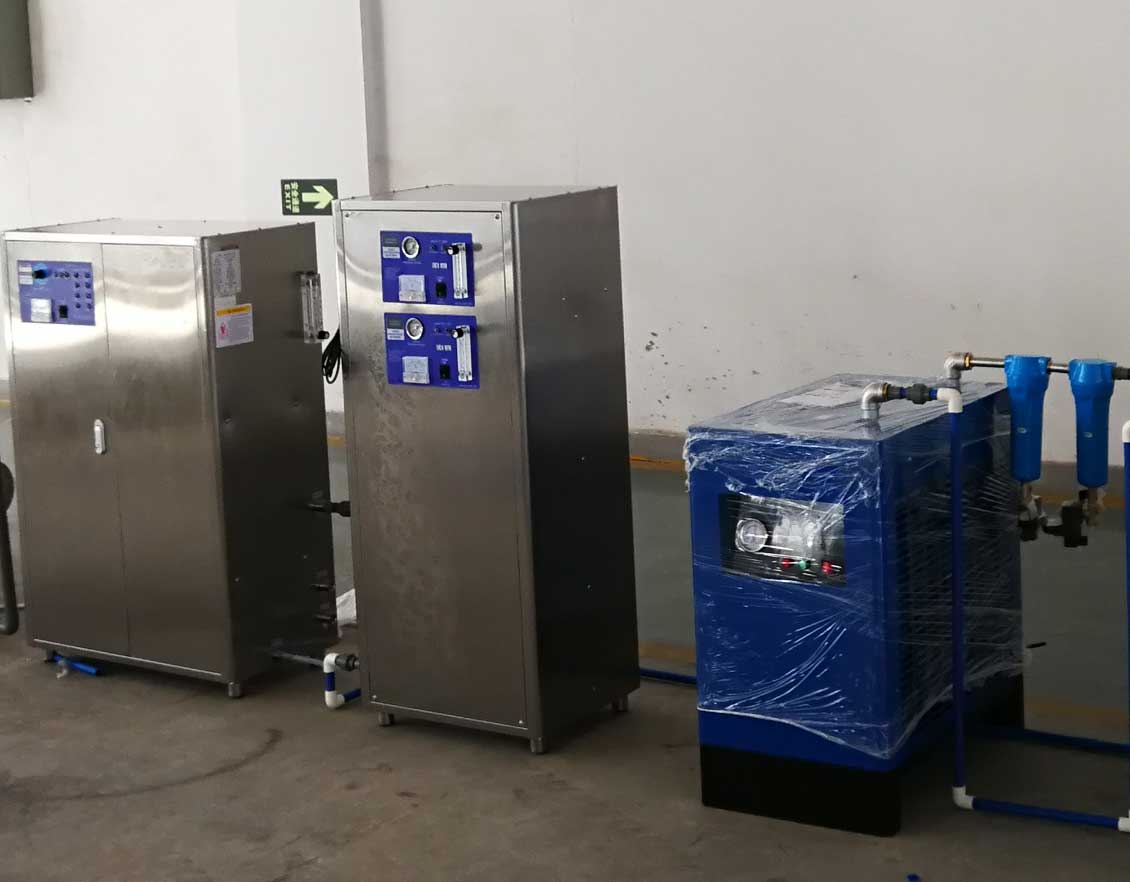

Third, the product line: OW-4TB (built-in air compressor, filter)
Equipment size: 300*285*590mm, 380*285*590mm, 350*500*850mm, 520*370*1100mm etc
Weight: 27~900kg
Power: 110~500W
